True Axis Physics SDK 1.2.0.1 Beta Documentation
www.trueaxis.com

TA::CollisionObject Class Reference

#include "TA/Physics/CollisionObject.h"

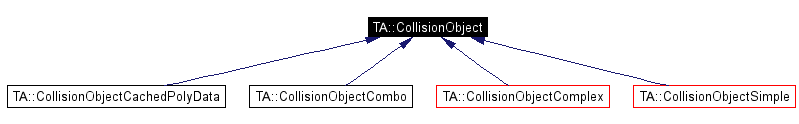

Inheritance diagram for TA::CollisionObject:

Detailed Description

The base class of all collision objects.

Go here more information on collision objects.

Reference Counting:: This class is reference counted. After the object is created it will have a reference count of one. AddRef() and Release() can be called to increment and decrement the reference count. If the reference count is zero after a call to Release() the object will be automatically deleted. Reference counted objects should only be created using new.

Public Types

enum Type {
  TYPE_CONVEX = 0,
  TYPE_LINE_LIST,
  TYPE_CAPSULE,
  TYPE_SPHERE,
  TYPE_CYLINDER,
  TYPE_COMPLEX,
  TYPE_CACHED_POLY_DATA,
  TYPE_COMBO,
  NUM_TYPES
}

Public Member Functions

bool InitialiseFromFile (const Char *szFileName)

bool SaveToFile (const Char *szFileName)

bool InitialiseFromFileInMemory (void *pFileData, int nSizeInBytes)

bool SaveToFileInMemory (void *pFileData, int nSizeInBytes)

int CalculateFileSize ()

virtual bool Serialisable () const

virtual void Render (const MFrame &mFrame)

virtual const AABB & GetAABB () const =0

virtual bool TestLineForCollision (const Vec3 &v3Start, const Vec3 &v3Normal, float fLength, Collision &collision) const =0

int GetCollisionObjectType () const

void SetUserData (u32 nUserData)

u32 GetUserData () const

Internal

virtual void Serialise (Serialiser &serialiser, const Version &version)

Protected Member Functions

CollisionObject (int nType)

const AABB & NoGetAABB () const

Protected Attributes

AABB s_NullAABB


Public Types
enum	Type { TYPE_CONVEX = 0, TYPE_LINE_LIST, TYPE_CAPSULE, TYPE_SPHERE, TYPE_CYLINDER, TYPE_COMPLEX, TYPE_CACHED_POLY_DATA, TYPE_COMBO, NUM_TYPES }
Public Member Functions
bool	InitialiseFromFile (const Char *szFileName)
bool	SaveToFile (const Char *szFileName)
bool	InitialiseFromFileInMemory (void *pFileData, int nSizeInBytes)
bool	SaveToFileInMemory (void *pFileData, int nSizeInBytes)
int	CalculateFileSize ()
virtual bool	Serialisable () const
virtual void	Render (const MFrame &mFrame)
virtual const AABB &	GetAABB () const =0
virtual bool	TestLineForCollision (const Vec3 &v3Start, const Vec3 &v3Normal, float fLength, Collision &collision) const =0
int	GetCollisionObjectType () const
void	SetUserData (u32 nUserData)
u32	GetUserData () const
Internal
virtual void	Serialise (Serialiser &serialiser, const Version &version)
Protected Member Functions
	CollisionObject (int nType)
const AABB &	NoGetAABB () const
Protected Attributes
AABB	s_NullAABB
